Troubleshoot a Device :

1. ) Check all containers :

pi@raspiberry$ docker ps

CONTAINER ID IMAGE NAMES

6030a77910a8 prom/node-exporter:v0.18.1 node-exporter

f241363e15e7 eclipse-mosquitto:1.6.9 mosquitto

19325349c504 prom/prometheus:latest prometheus

89ca7aceab48 192.168.7.7:5002/ame/collectors/video_armhf:7.17 video-focus

8c85e98cd6c5 192.168.7.7:5002/ame/collectors/video_armhf:7.17 video-capture

01a3ae5cd2fb videodevices_grafana grafana

1e1ed35b990d 192.168.7.7:5002/ame/collectors/video_armhf:7.17 video-alert

26c7a8bb3379 videodevices_autoheal autoheal

59fd02151fdd intertrade/ame-interface:armhf_7.0.0 ame-interface

434f204a09c5 intertrade/edge_bot:armhf_7.0.0 or 6.6 for pi3 edge_bot

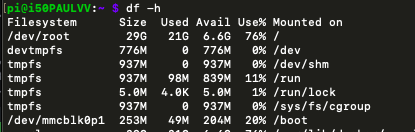

2. ) Check that the device has sufficient Space :

pi@raspiberry$ df -h

6.6 GB Available .

3. ) Check the Logs :

pi@raspiberry$ cd /var/log
pi@raspiberry/var/log/$ sudo more syslog | grep "search_criteria"

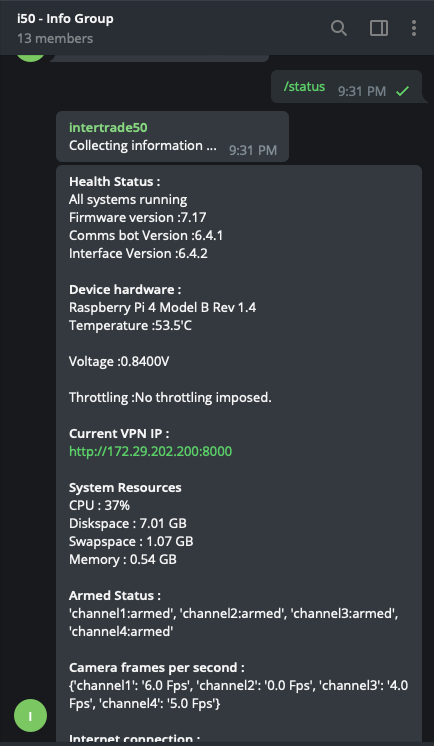

4. ) Check that the Bot is responding :

pi@raspiberry$ Go to Telegram and send /test and also send /status.

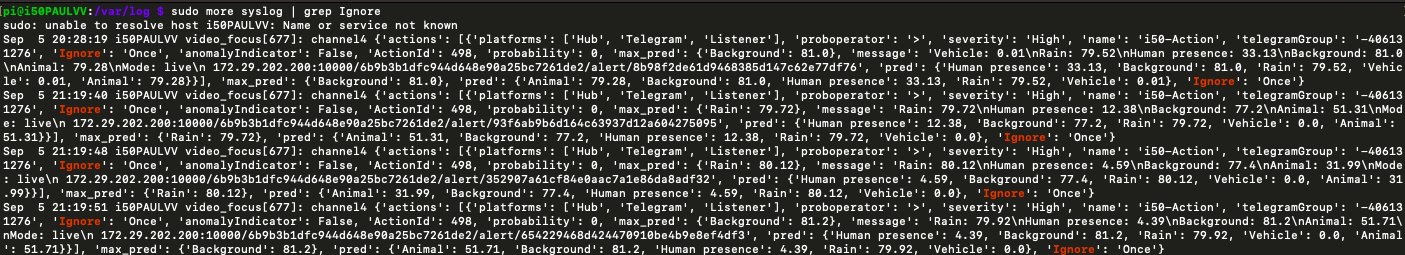

5. ) Check Logs for predictions and what Rules/Action is on the device :

pi@raspiberry$ cd /var/log

pi@raspberry/var/log/$ sudo more syslog | grep Ignore

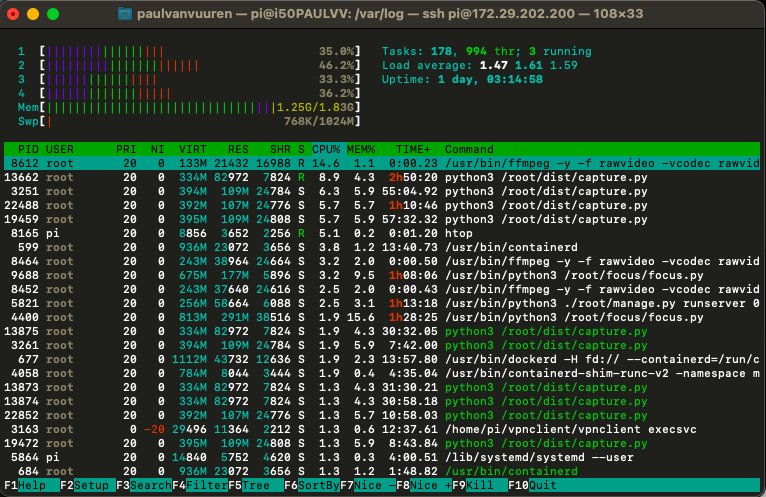

6. ) Check the Devices Resources :

pi@raspiberry$ htop

Monitor the Load Average : 1.47 1.61 1.59 # Load cutoff is 50

Monitor the Available Memory : Mem 1.25G / 1.83G # Should have at least 100Mb Free.

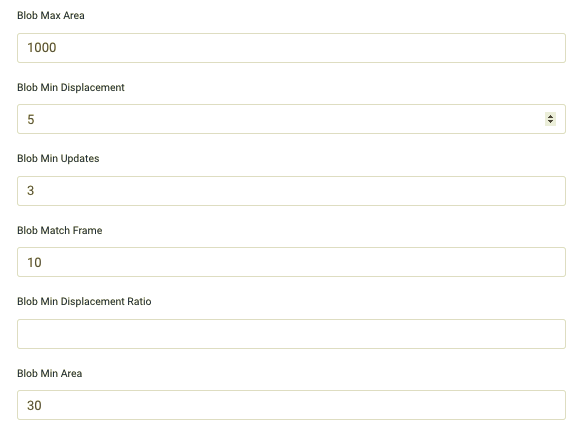

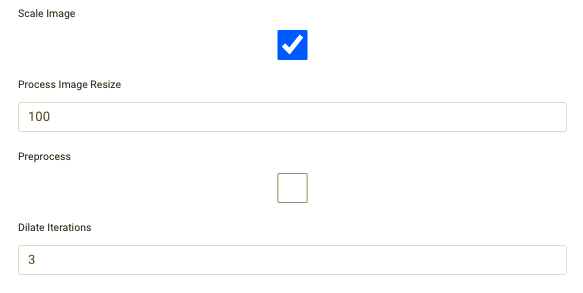

7. ) Check the Channels Advanced Config :

Above is the Default config. Only min,max blob sizes should be changed.
Dilate is 1 - > 4
1 : very close up objects.
2 : 10 Meters
3 : 30 Meters

4 : 50 Meters - very small objects

Preprocess should be off unless its a Nuc with Special configuration , Like Louis Dubb

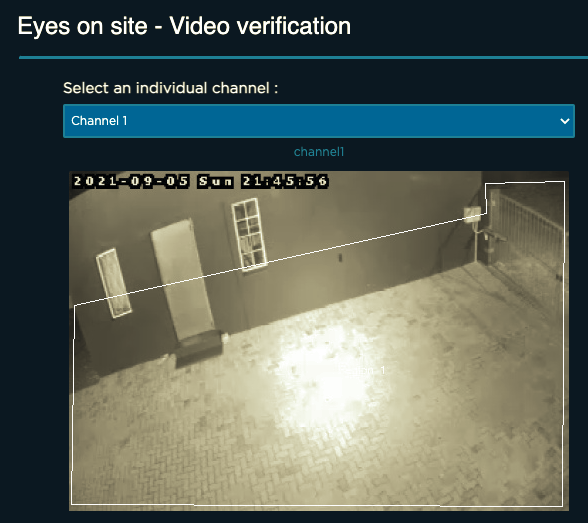

8. ) Check Live view, and Playback :

make sure you look at the Time and see that its ticking.

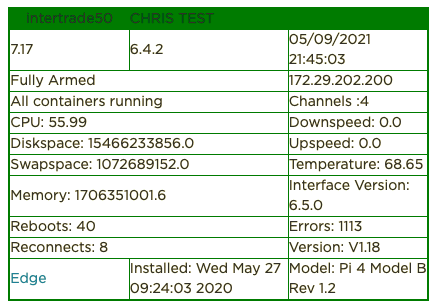

9. ) Check the Devices communication with AME-Maintenance server :

pi@raspberry$ cd amedevices/videodevices/APPS/edge_bot
pi@raspberry/APPS/edge_bot$ python3 online_status.py

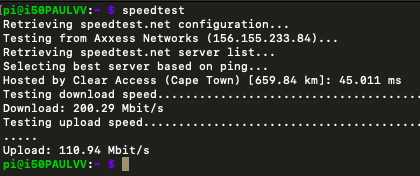

10. ) Do a Speedtest on the Device :

pi@raspberry$ speedtest

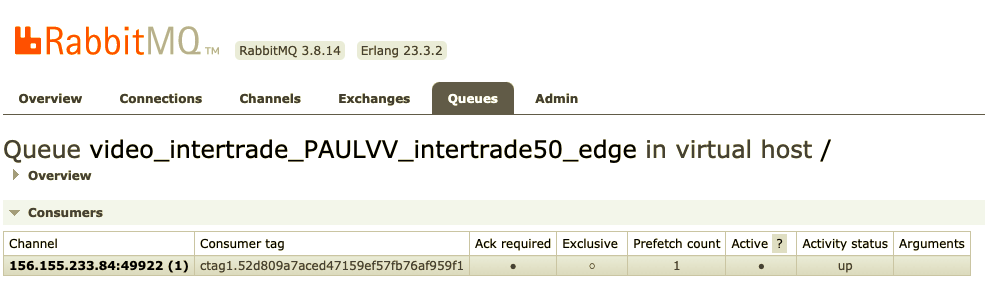

11. ) Check that the Device is consuming from Rabbit :

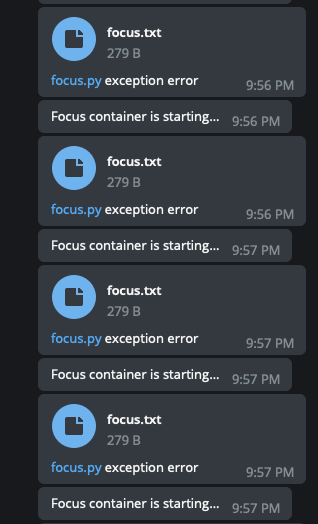

12. ) Check Telegram info group for any exit Traps :

alert.txt

focus.txt

capture.txt

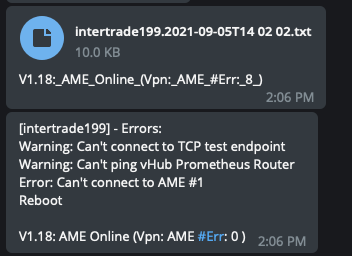

Excessive V1.18 VPN Notices

13.)
