To add cameras to Avlytics device's the user can login to the SeeingAME Hub : http://192.168.7.1:8300
Ensure that your VPN Client is connected.
When adding cameras to the Hub the user will need the following information:
Camera or DVR Brand , IP Address , Rtsp Port number , Username and Password.
With this information the user can determine the rtsp url for a particular dvr or camera.
Refer to the below table to create the rtsp url from the given information :
Avtech RTSP Stream (NVR) Example URL:
rtsp://username:password@ipaddress:rtspport/live/video/h264/ch1/sub
Avtech RTSP Stream (Camera)
rtsp://username:password@ipaddress:rtspport/live/video/profile2
Hikvision RTSP Stream (NVR) Example URL:
rtsp://username:password@ipaddress:rtspport/Streaming/Channels/102
Dahua RTSP stream (Cameras & NVR) Example URL:
rtsp://username:password@ipaddress:rtspport/cam/realmonitor?channel=1&subtype=1
Uniview RTSP Stream (NVR) Example URL:
rtsp://username:password@ipaddress:rtspport/unicast/c2/s2/live
Uniview RTSP Stream (Camera) Example URL:
rtsp://username:password@ipaddress:rtspport/media/video2
Axis RTSP Stream Example URL:
rtsp://username:password@ipaddress:rtspport/axis-media/media.amp
Samsung / Hanwha Techwin NVR RTSP Stream Example:
rtsp://username:password@ipaddress:rtspport/LiveChannel/0/media.smp

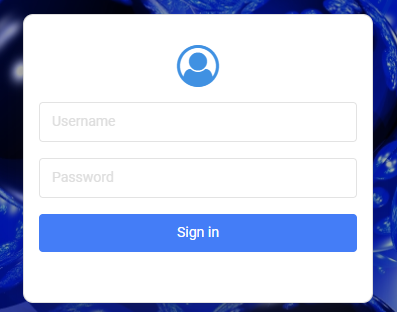

After connecting to the seeingAME Hub you will be presented with the Login screen.
Step 1: Login with your credentials to proceed to the next step.

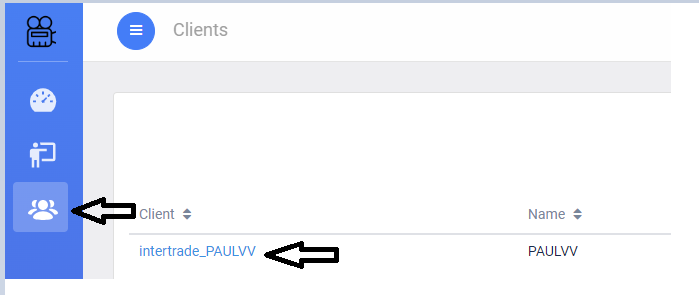

Step 2:After logging into your account select "Clients" from the menu on the left.
Step 2.1: Select the client on your account as displayed in image below.

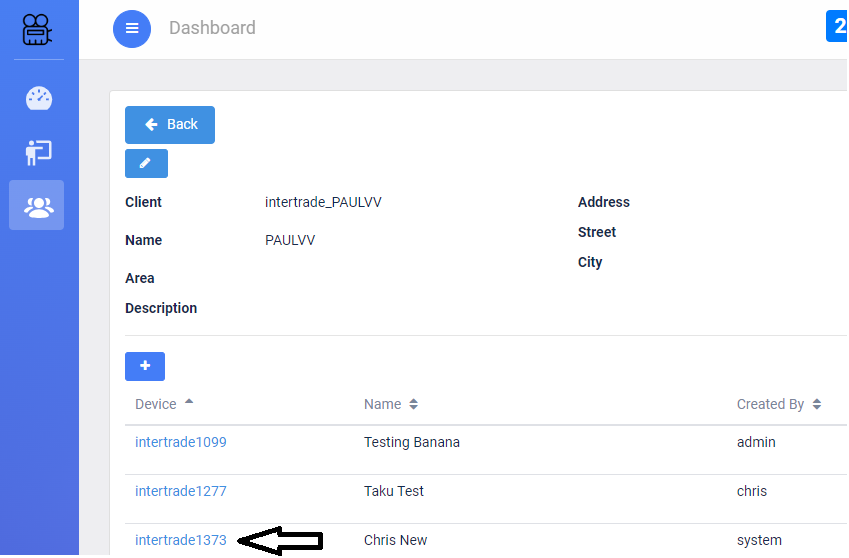

After client has been selected there will be a display of all devices linked to this client.
Step 3: Select the device you would like to add cameras to.

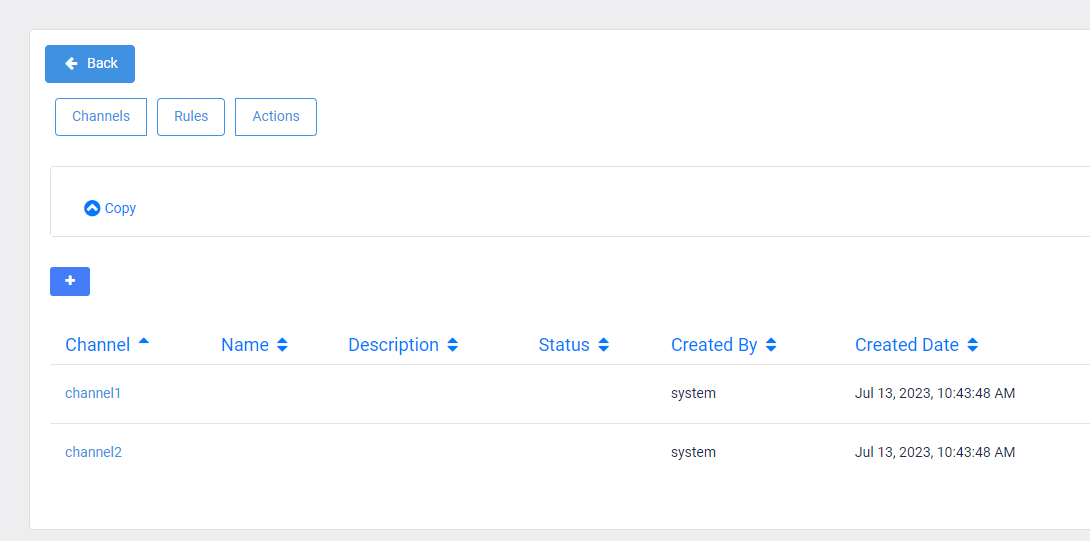

Step 4: Select available channel or channel that you would like to edit the configuration for.

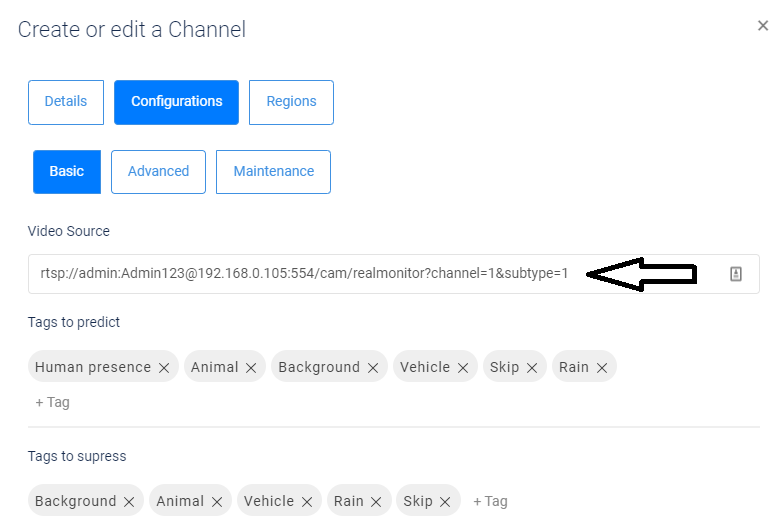

Step 5: After selecting which channel you would like to make adjustments on the following page will pop up as displayed in image below.
You can edit or add the rtsp stream url that should be used.
Please note that each brand of dvr/nvr has a specific rtsp url, List of brand rtsp urls can be found in the reference table above.

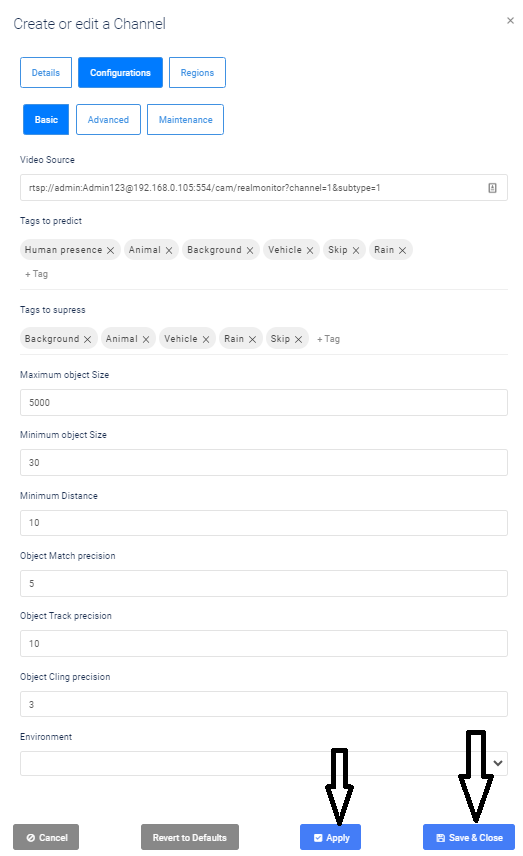

Step 6: Once happy with all the details inputted into Video Source (Rtsp Url), save and apply the changes made.
Next the user needs to set the region of interest for the new or edited camera.
Step 7: Select the same channel just edited in order to open config pop up (as displayed in Step 4)

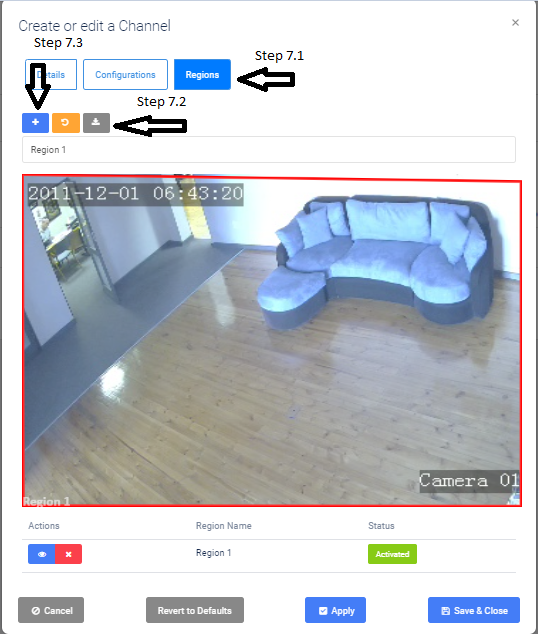

Step 7.1 Select the (Regions tab in config menu)
Step 7.2 Download new snapshot from dvr. (Please check date and time on camera to ensure this snapshot is the latest.)
Step 7.3 Select the add sign to draw a new region in the cameras view.
Region drawing keys:
Left mouse click on area for new adjustable point.
Right click on mouse in center of region area to remove whole region or you can right click on white dots (adjustable points in region ) to remove just that point.
If the channel already has a region, the user can edit the region by clicking anywhere in the highlighted area and the region points will be displayed. Click and drag the region points to adjust the region and right click on a region point to remove that specific point.
Step 8: Apply and Save & Close
Once the channel configuration has been updated and the region has been corrected or implemented for the channel, the user needs to create an activation rule and add this channel's rule to the Action of where an alert should be generated if you are adding a new region.
If the region is being adjusted and not a new region configured, the user will not need to edit, add or adjust any Rules and Actions.
To add or adjust rules and actions, please refer to the Rules and Actions How to Guides.
